Jaw Rack for CNC Lathes / CNC Turning Centers 425 P/N 3822
Heavy-duty, mobile, dual-sided jaw rack designed for shops running multiple lathe and turning-center chuck sizes.
Overview

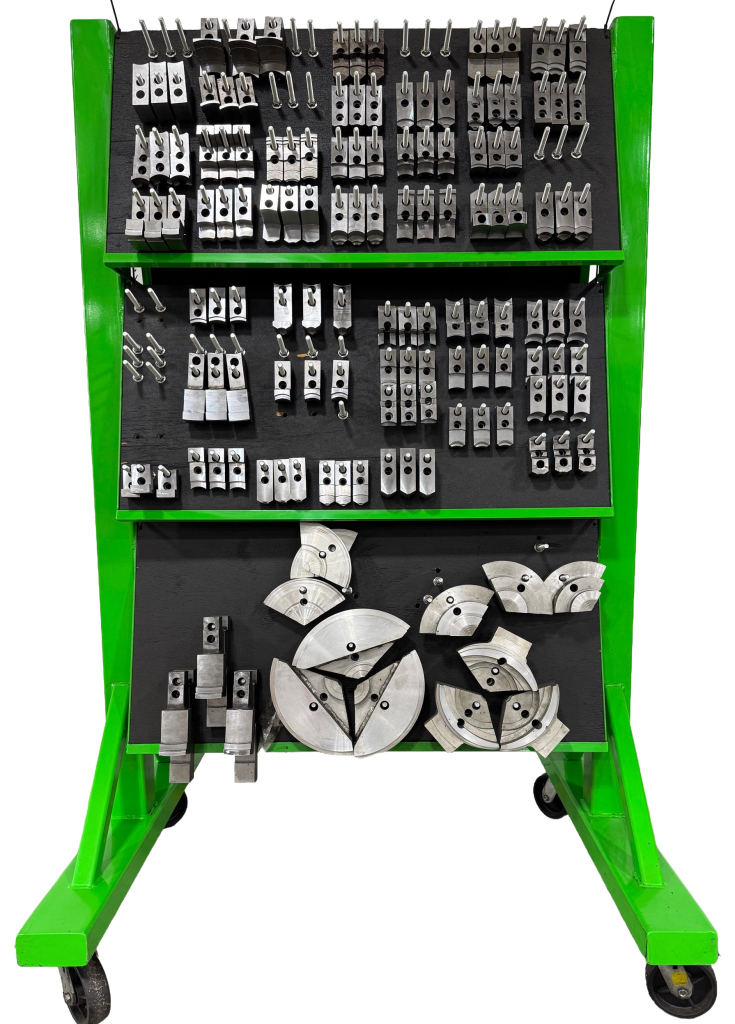

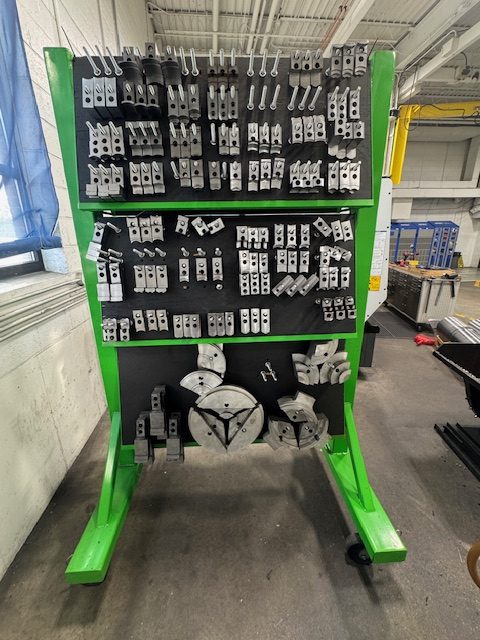

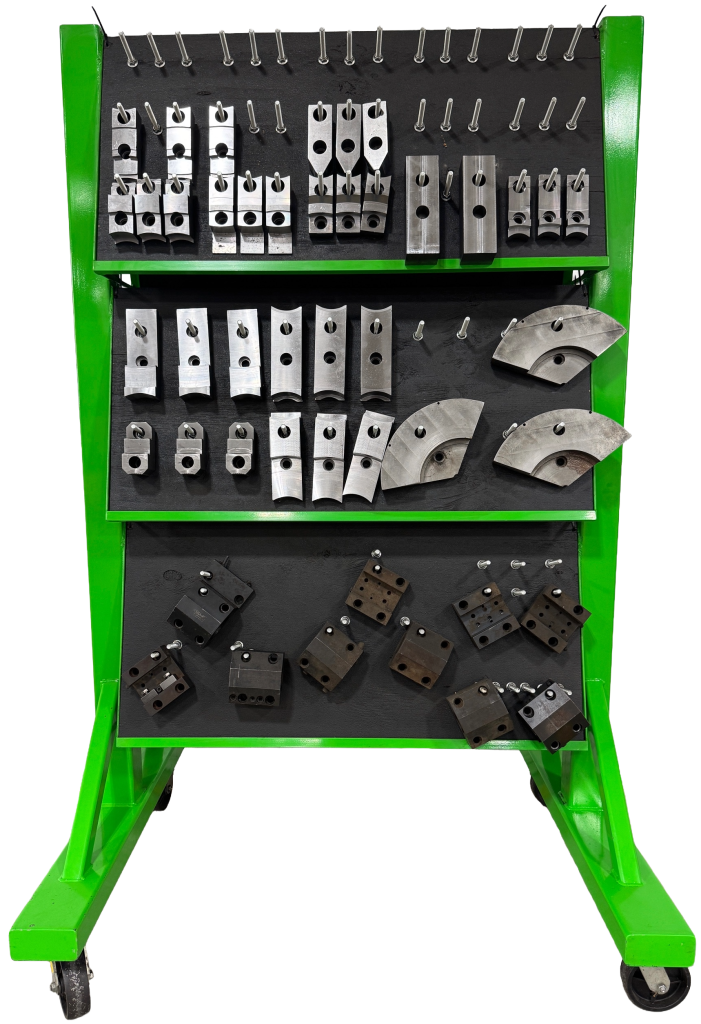

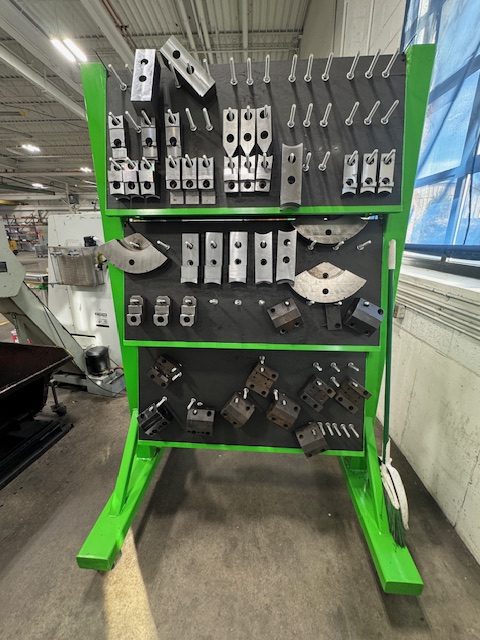

This jaw rack is built to organize and safely store your lathe jaws — from small 6″ sets to heavy 18″ jaws. With dual-sided storage, angled holders, and a rugged Raptor-Liner finish, it’s purpose-built for real shop environments and fast changeovers on any CNC lathe / CNC turning center.
Jaw Size Compatibility
Compatible with jaws used across all CNC lathes / CNC turning centers, including:
6″ jaws
8″ jaws
10″ jaws
15″ jaws
18″ jaws
Heavy-Duty Construction
Holders made from 3/4″ plywood
Each panel measures 24″ × 48″
Coated with black Raptor Liner for durability
Optional custom paint colors to match shop branding
Resistant to oil, chips, moisture, coolants, and daily wear
Key Features

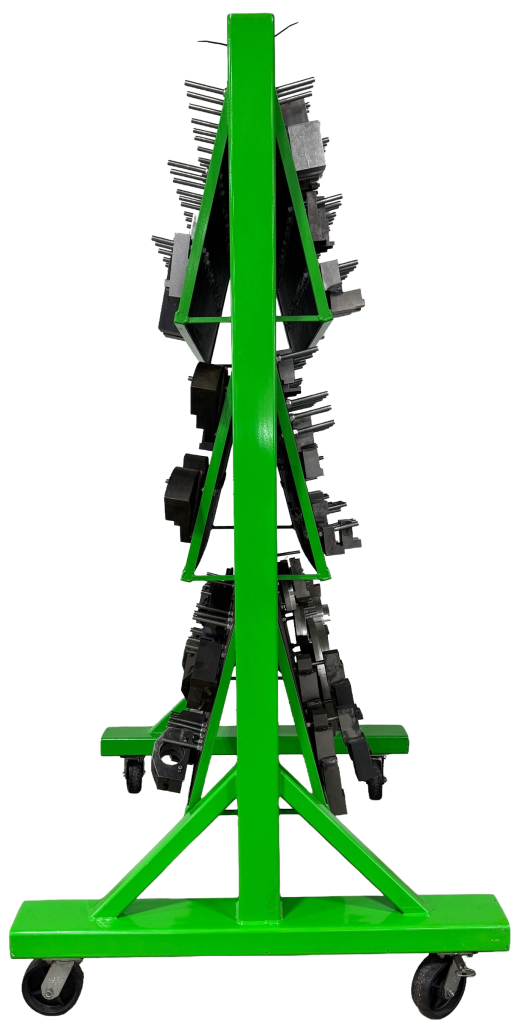

Dual-Sided Rack
Two-sided design
Three jaw holders per side
Six total holders

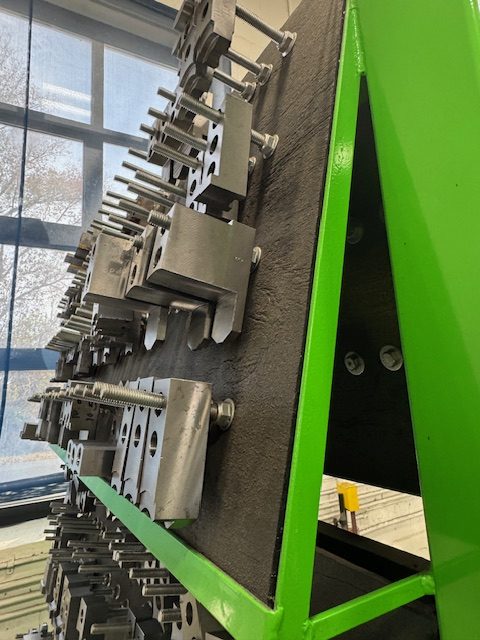

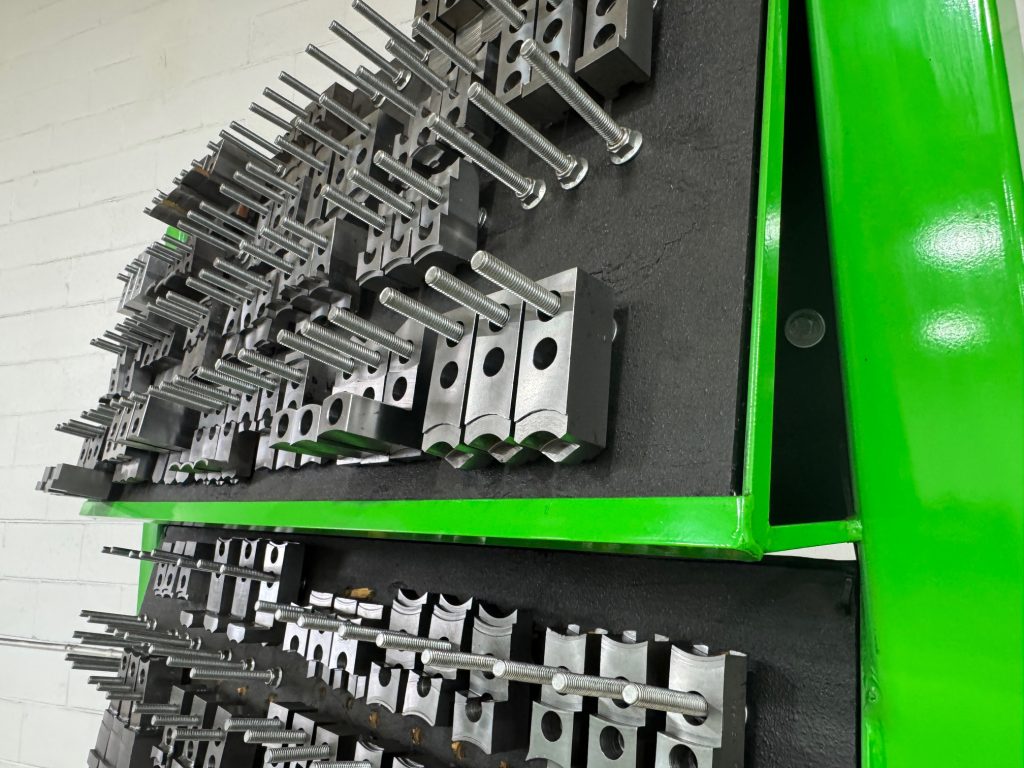

Angled Jaw Holders
Installed at a 15° angle
Keeps jaws safely seated
Prevents sliding or tipping
Easy one-hand access
Mobile & Shop-Ready
Four 6″ heavy-duty ball-bearing casters
Smooth movement across shop floors
Designed to roll even when fully loaded
Locking casters for stable use
Benefits
Centralized storage for all jaw sizes
Reduces clutter and speeds up jaw changeovers
Compact footprint with high storage density
Durable enough for full-time production
Available in custom color schemes
Ideal for CNC shops running multiple size lathes or CNC turning centers with chucks from 6″ to 18″

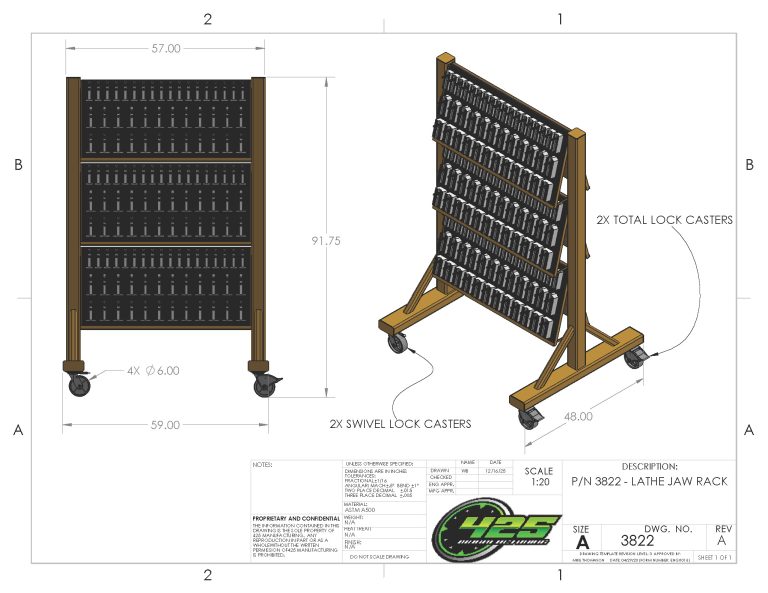

Technical Specifications
Total Holders: 6 (3 per side)
Holder Size: 24″ × 48″
Holder Material: 3/4″ plywood
Holder Angle: 15°
Finish: Black Raptor Liner or custom paint
Mobility: Four 6″ ball-bearing casters
Compatible Jaw Sizes: 6″–18″
Suitable Machines: CNC lathes, CNC turning centers, manual lathes
Use Cases
Store hard jaws, soft jaws, and oversized jaws
Organize by machine, chuck diameter, or job
Coordinate colors with machining cells or company branding
Position near your tool crib, lathe row, or turning center workcell
Perfect for CNC machine shops, toolrooms, and high-production machining facilities
